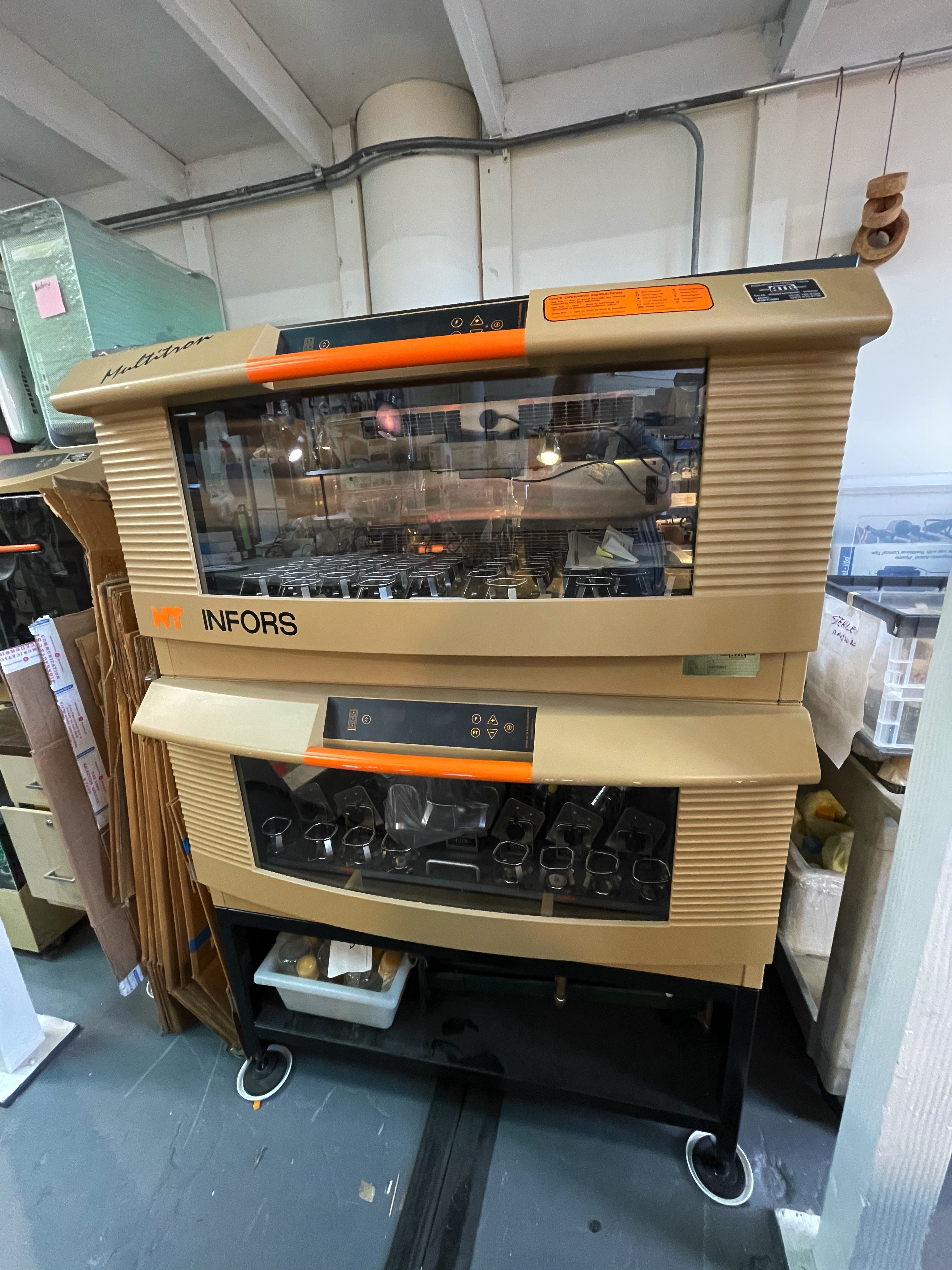

Infors incubator shaker Gallery
Description
OPERATION

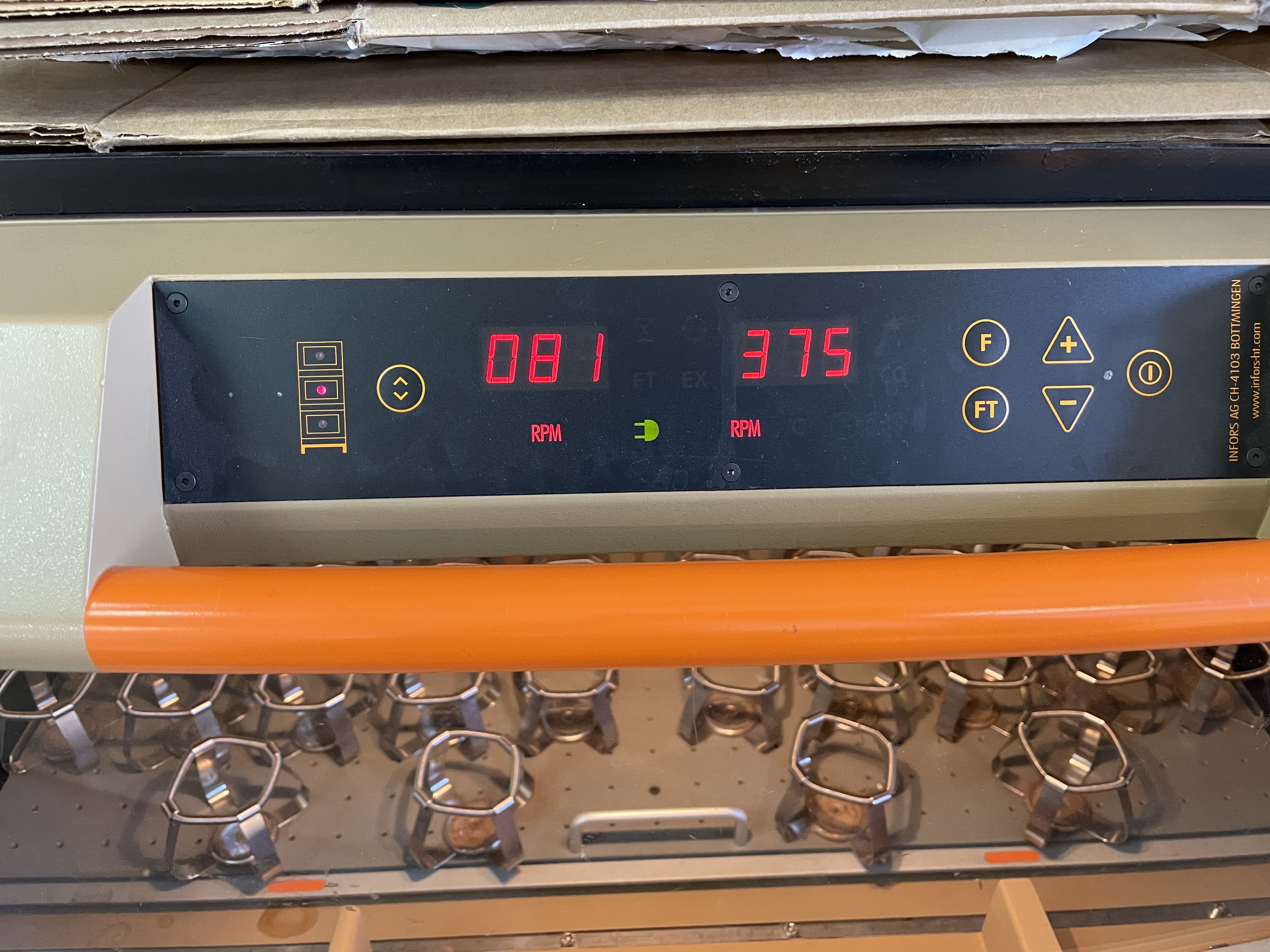

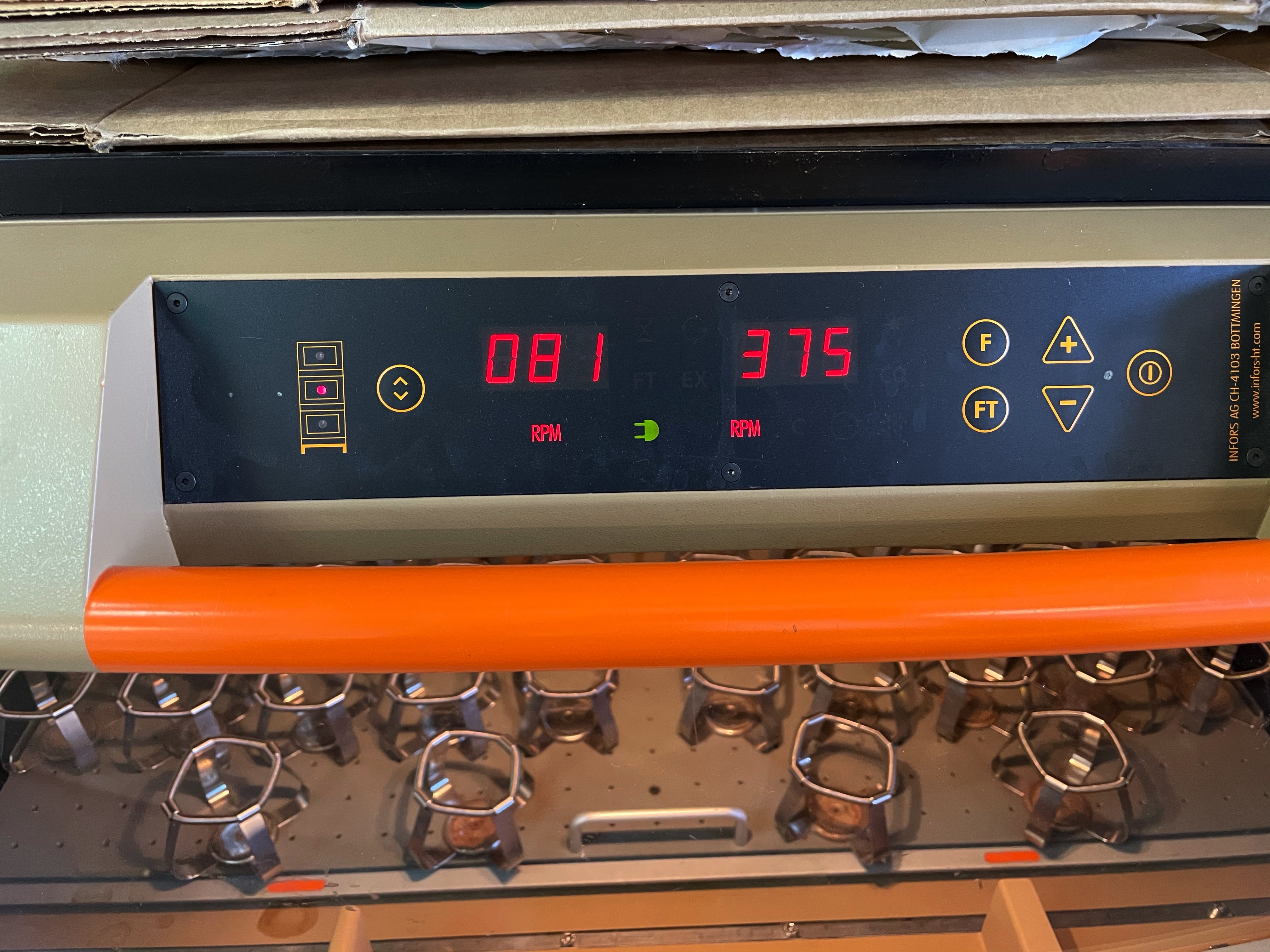

• Splash-proof keypad with LED display, easily seen from across the lab
• On/Off control with alternating display of speed and temperature during run mode
• Operation resumed after closing door after power failure
• Platform released when door fully opened without the need of a latch
CONSTRUCTION
• Lightweight polyurethane housing
• Dual cross-blower fans located inside a fully insulated and sealed chamber
• Protected drive motor located outside the incubation chamber
• Work light provided and activated by pressing any function key

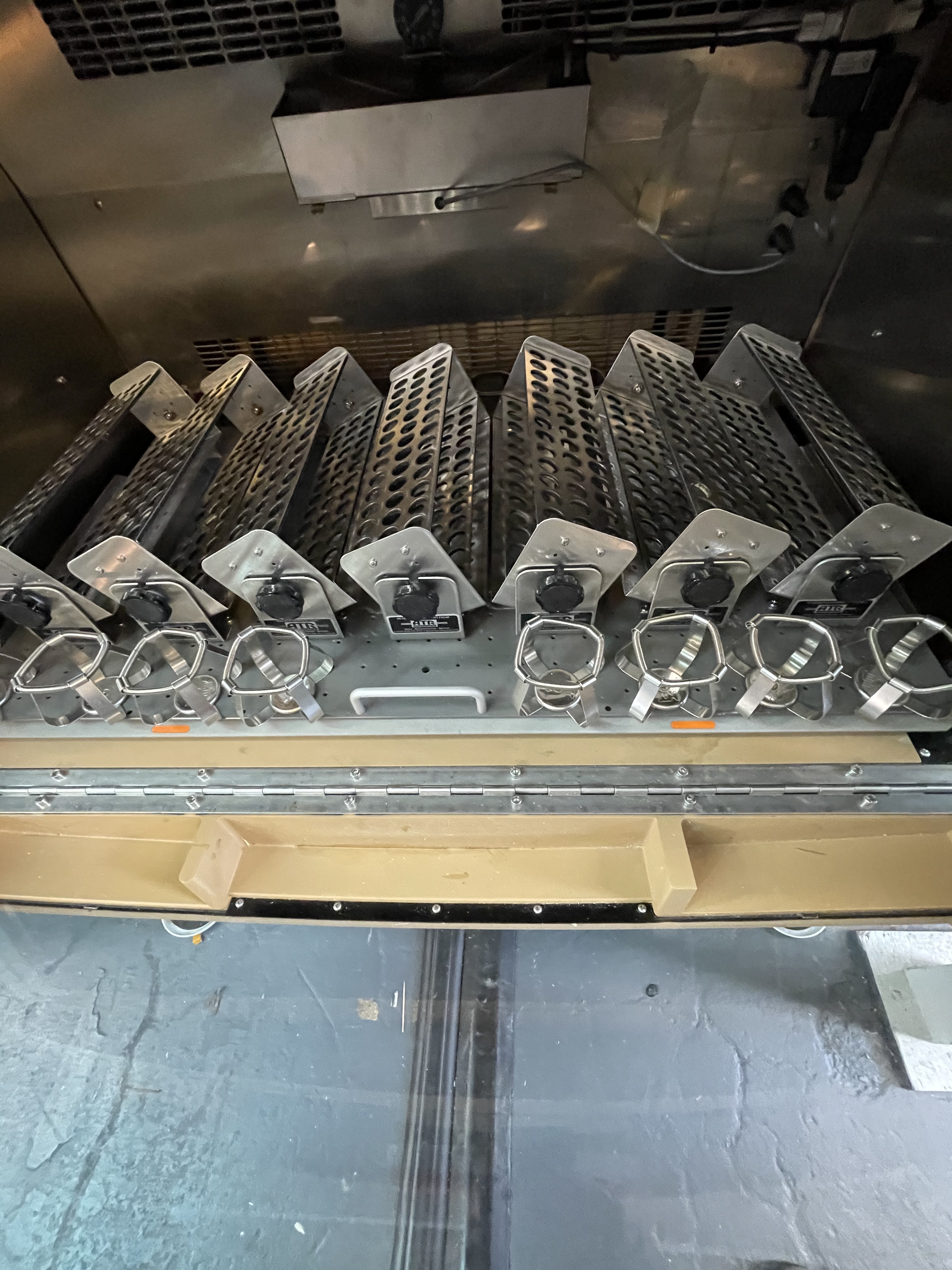

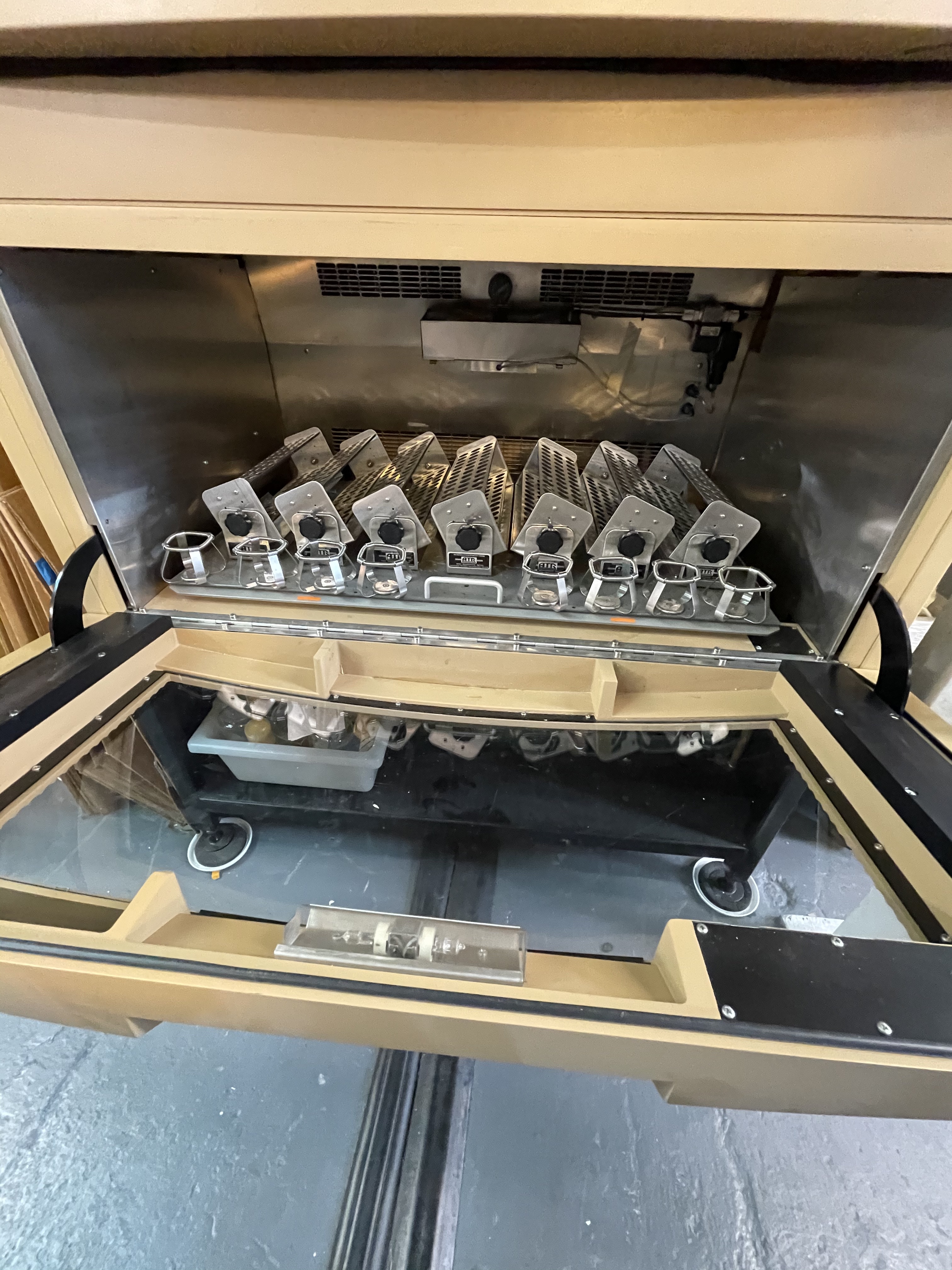

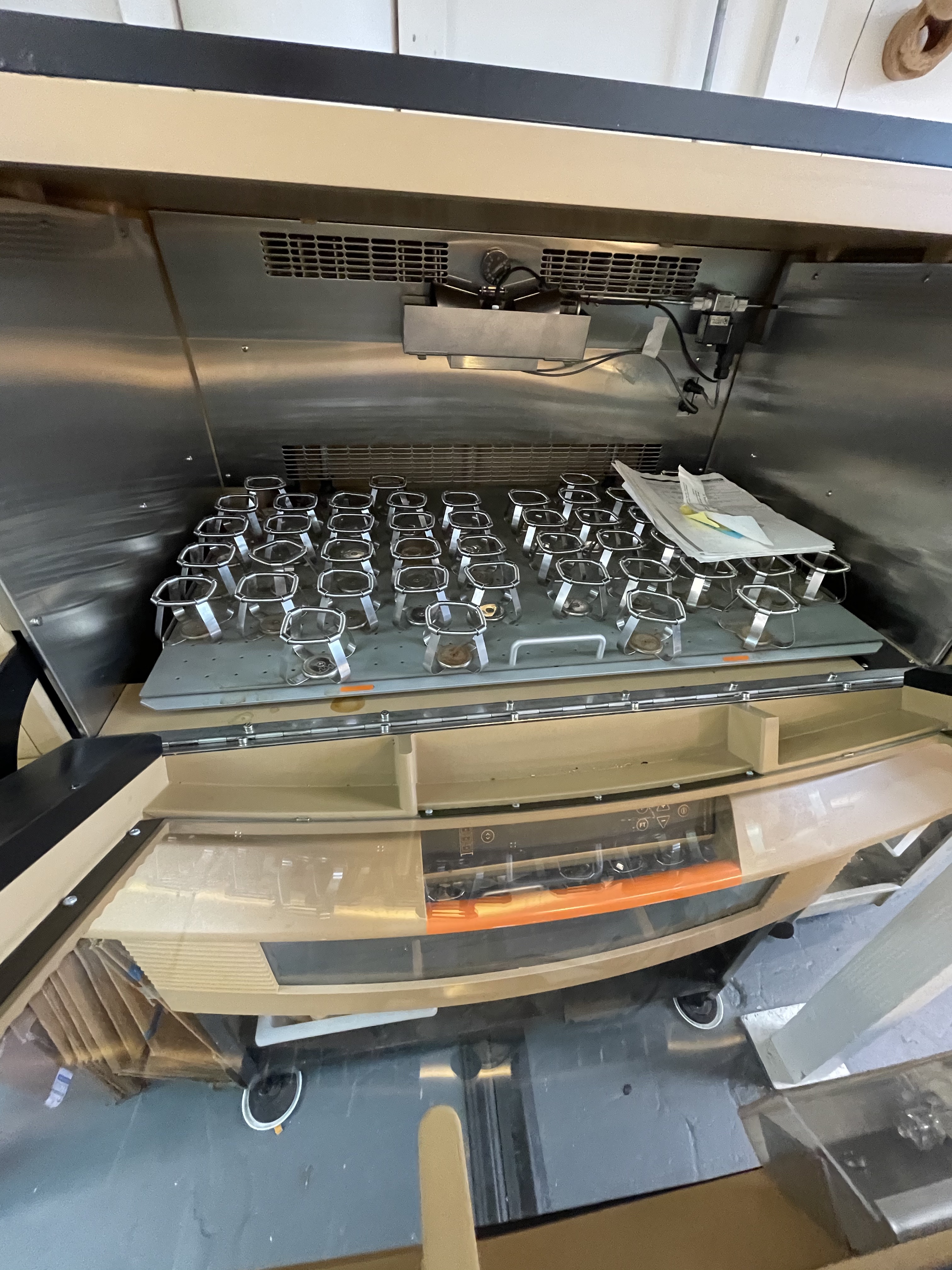

• Standard clamp trays or sticky stuff trays available

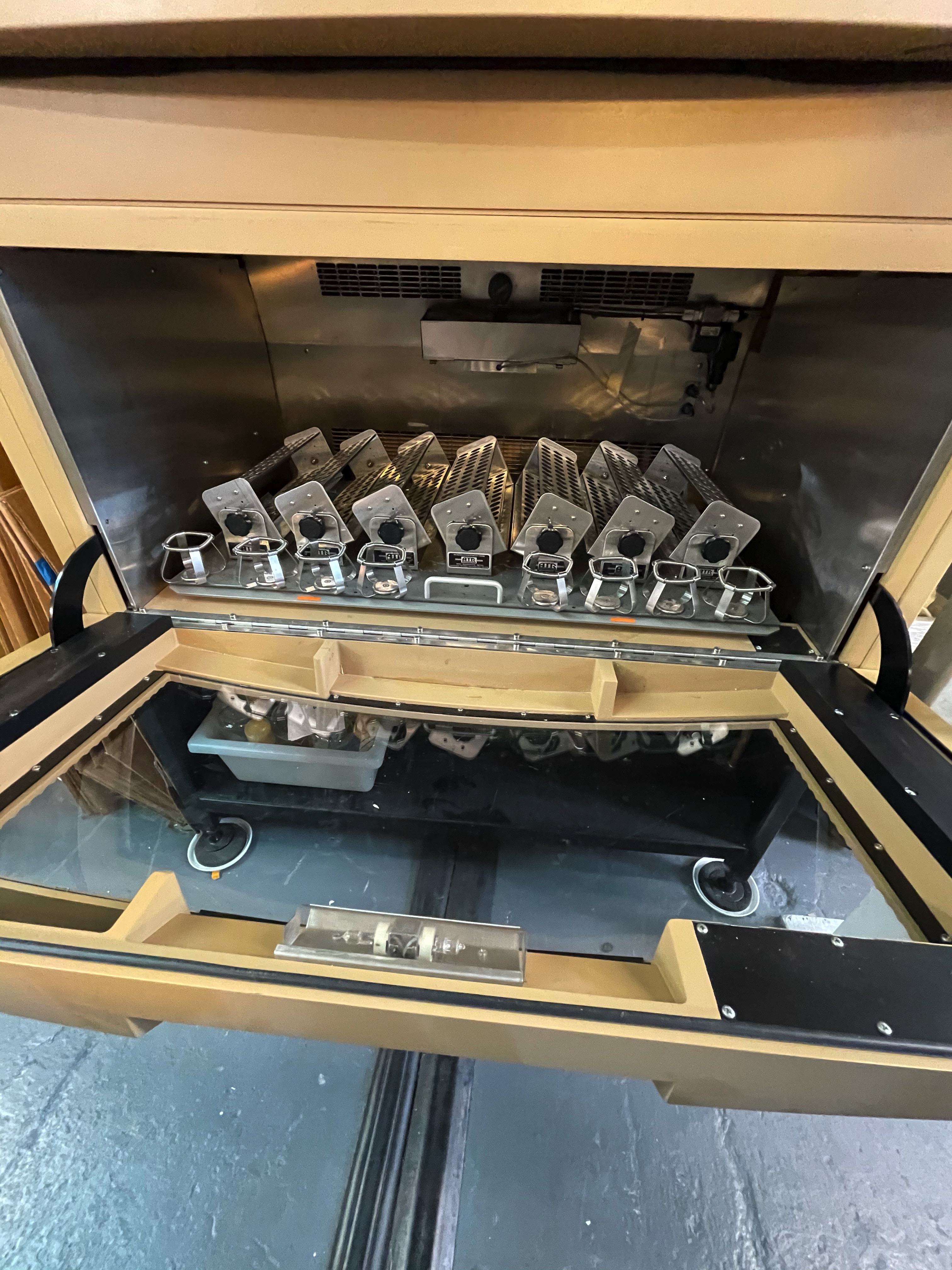

• Tray platform slides over doors
- Shaking motion: orbital
- Shaking speed: 20 - 400 rpm
- Shaking diameter: one inch
- Accuracy: 1% at max. speed
- Temperature range: 5°C above room temperature up to 65°C
- Precision: ± 0.2°C (Pt100 sensor)
- Air circulation: 360 m3/h
- Heating capacity: 700 W
- Cooling capacity (if fitted): 900 W
- Interface: RS-232, bi-directional
Dimensions (W x D x H) | 875 x 1070 x 550 mm (one unit) / 875 x 1070 x 1760 mm (three units) |
Maximum working height | 135 mm (one unit) / 1300 mm (three units) |
Number of batches | 197 per unit |
Volume | 21 L per unit |
Maximum load | 19 kg per unit |

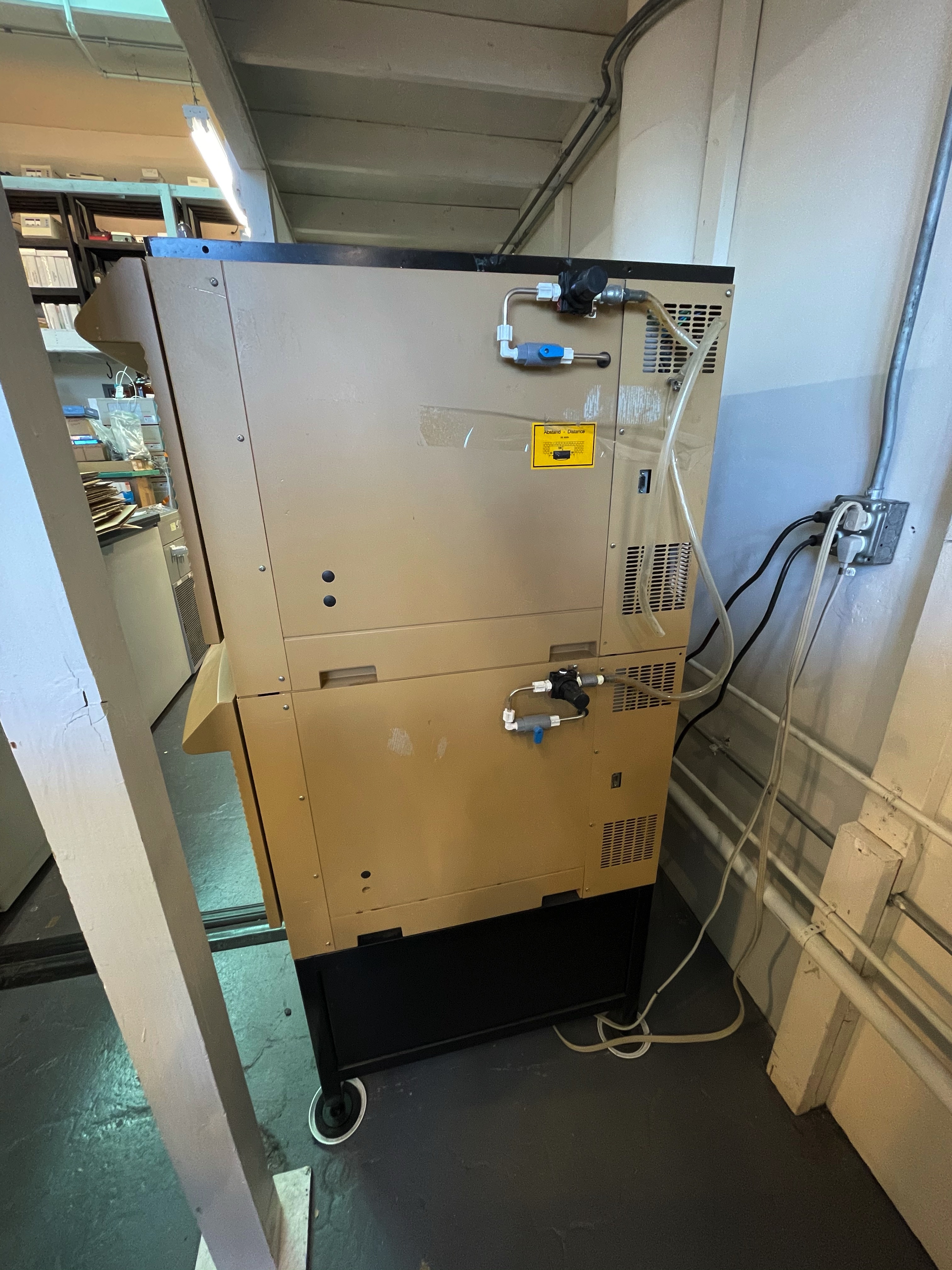

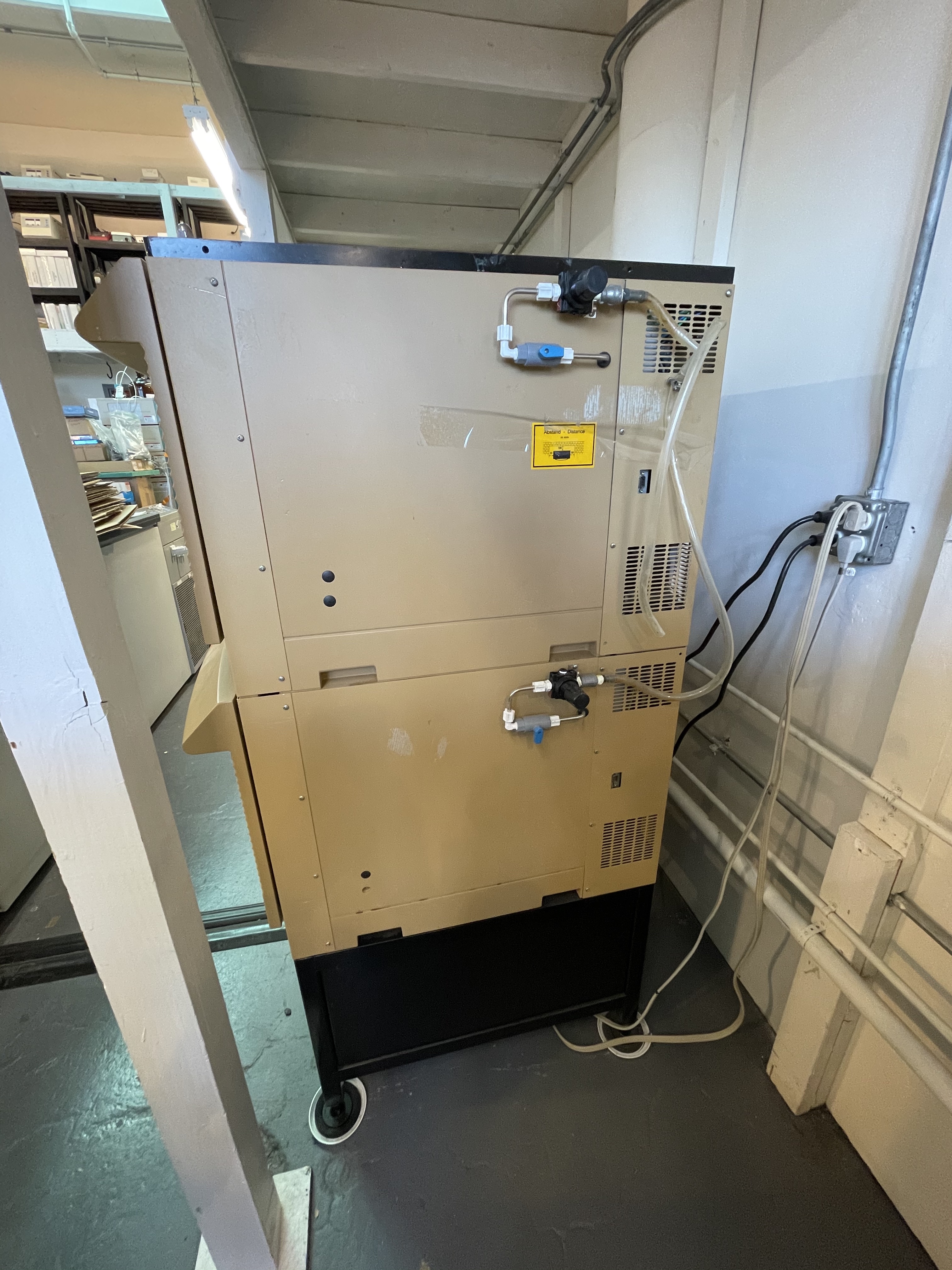

Maximum expansion | Up to 3 units can be stacked |
Rotation speed | 20–400 min-1 depending on load and stacking |
Shaking throw | 25 mm / 50 mm |
Temperature | 6 °C above RT to 65 °C 12 °C below RT to 65 °C (with top cooling) 13 °C below RT to 65 °C (with lateral cooling) Minimum temperature 4 °C |
Standard parameters | Temperature, rotation speed, timer |
Optional parameters | Cooling |
Ambient humidity (rH) | Up to 85 % non-condensing |
Power supply | 115/230 V ± 10%, 50/60 Hz |
Interface | serial |

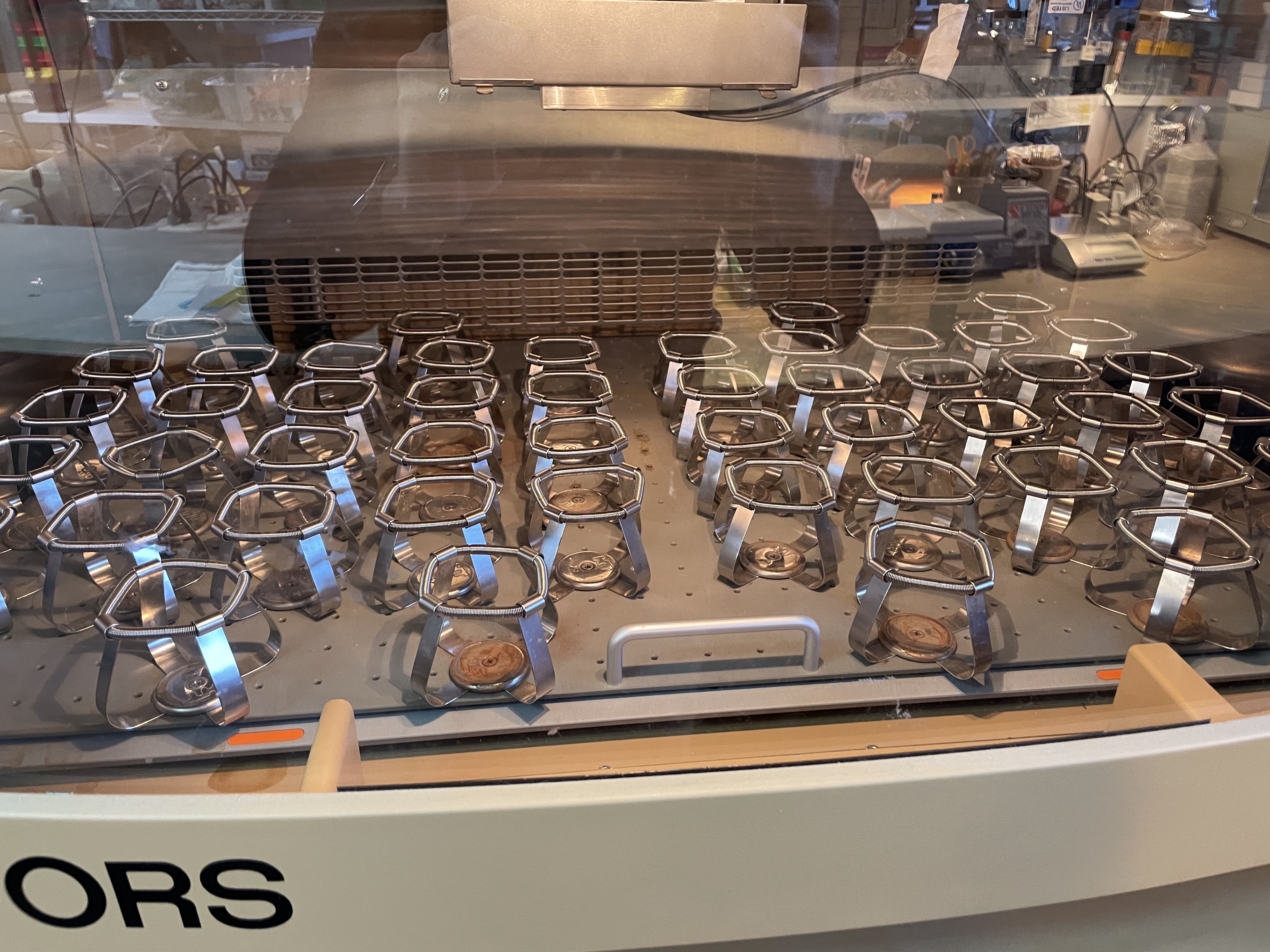

Tray capacity |

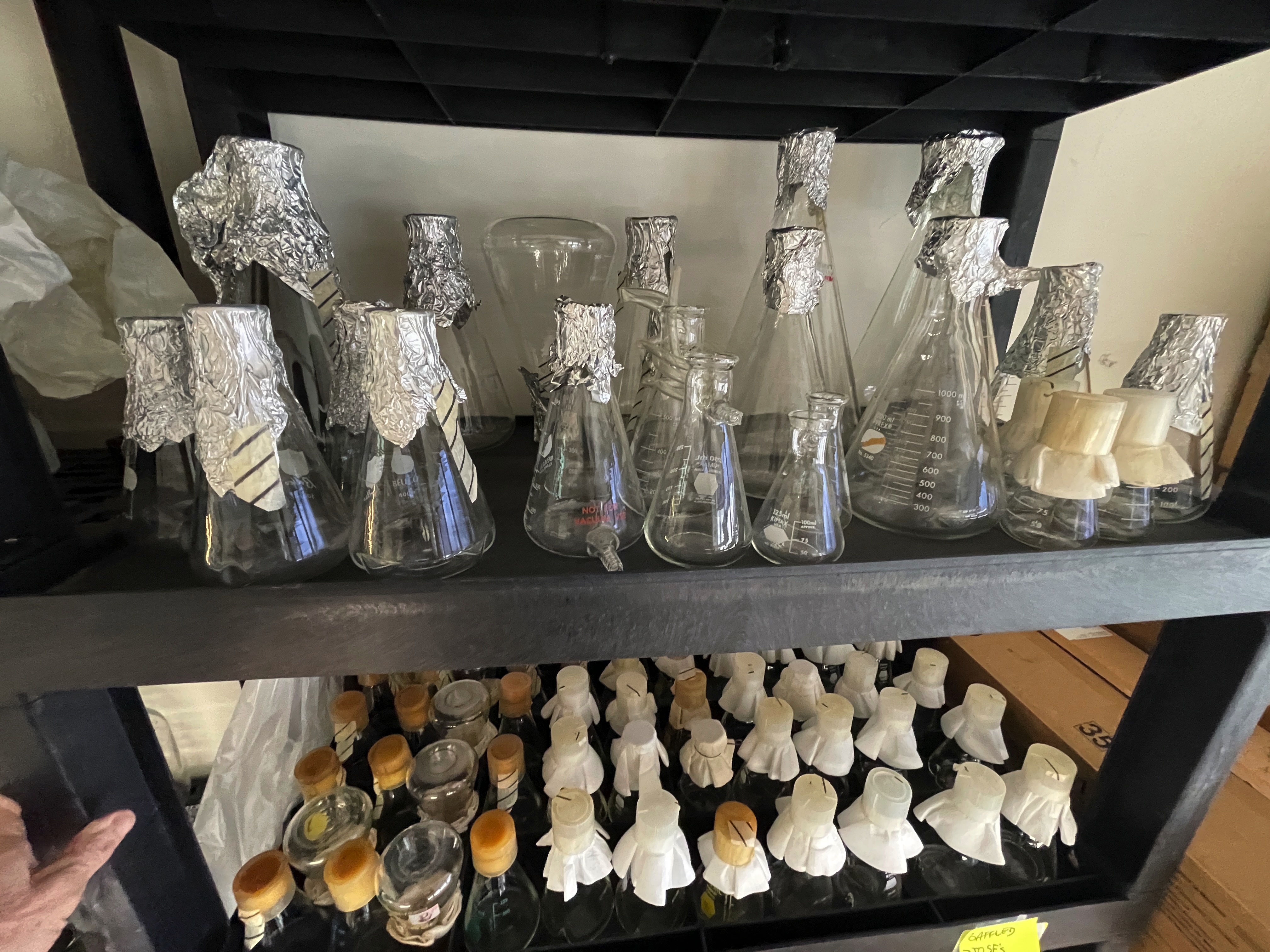

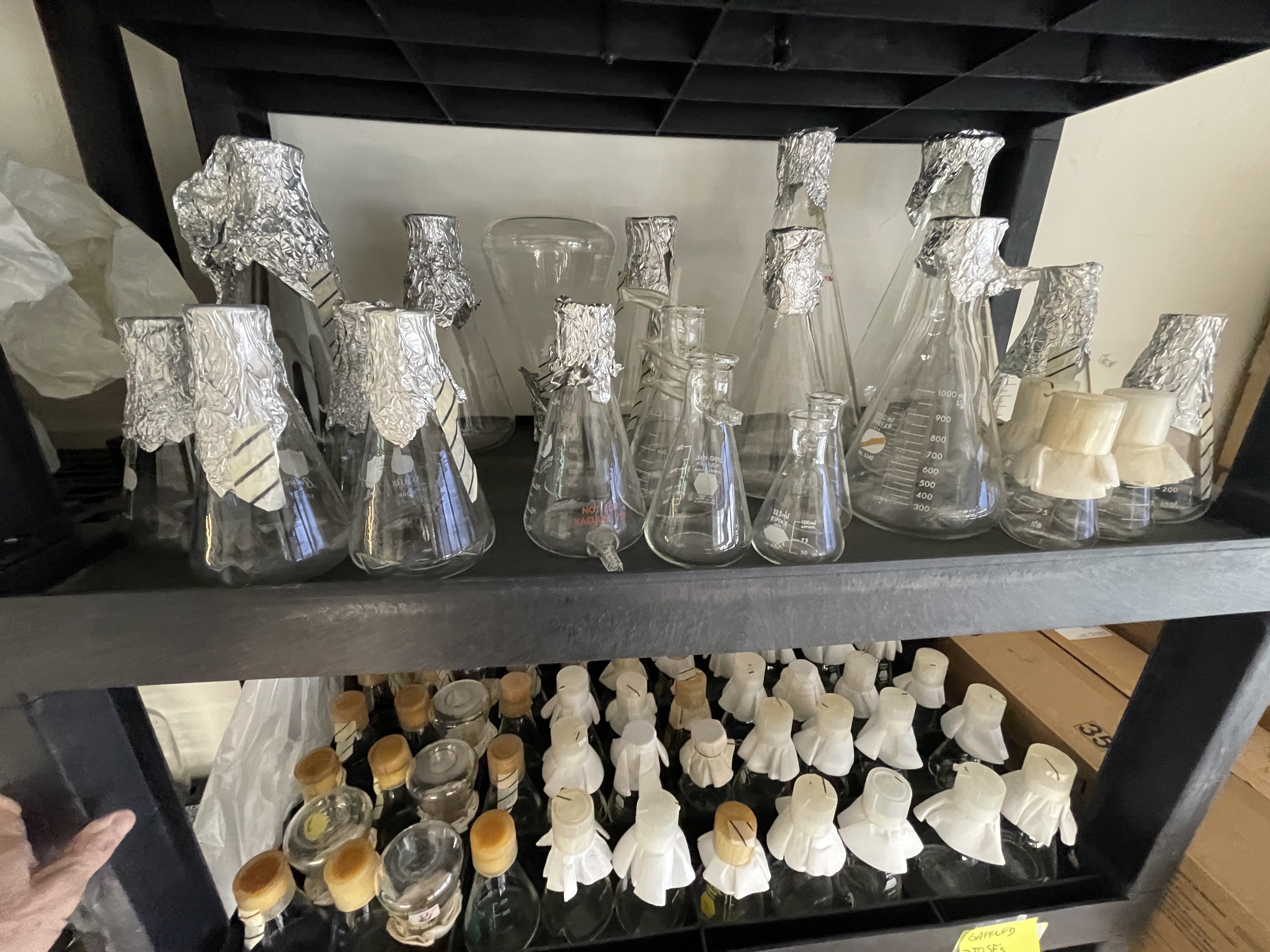

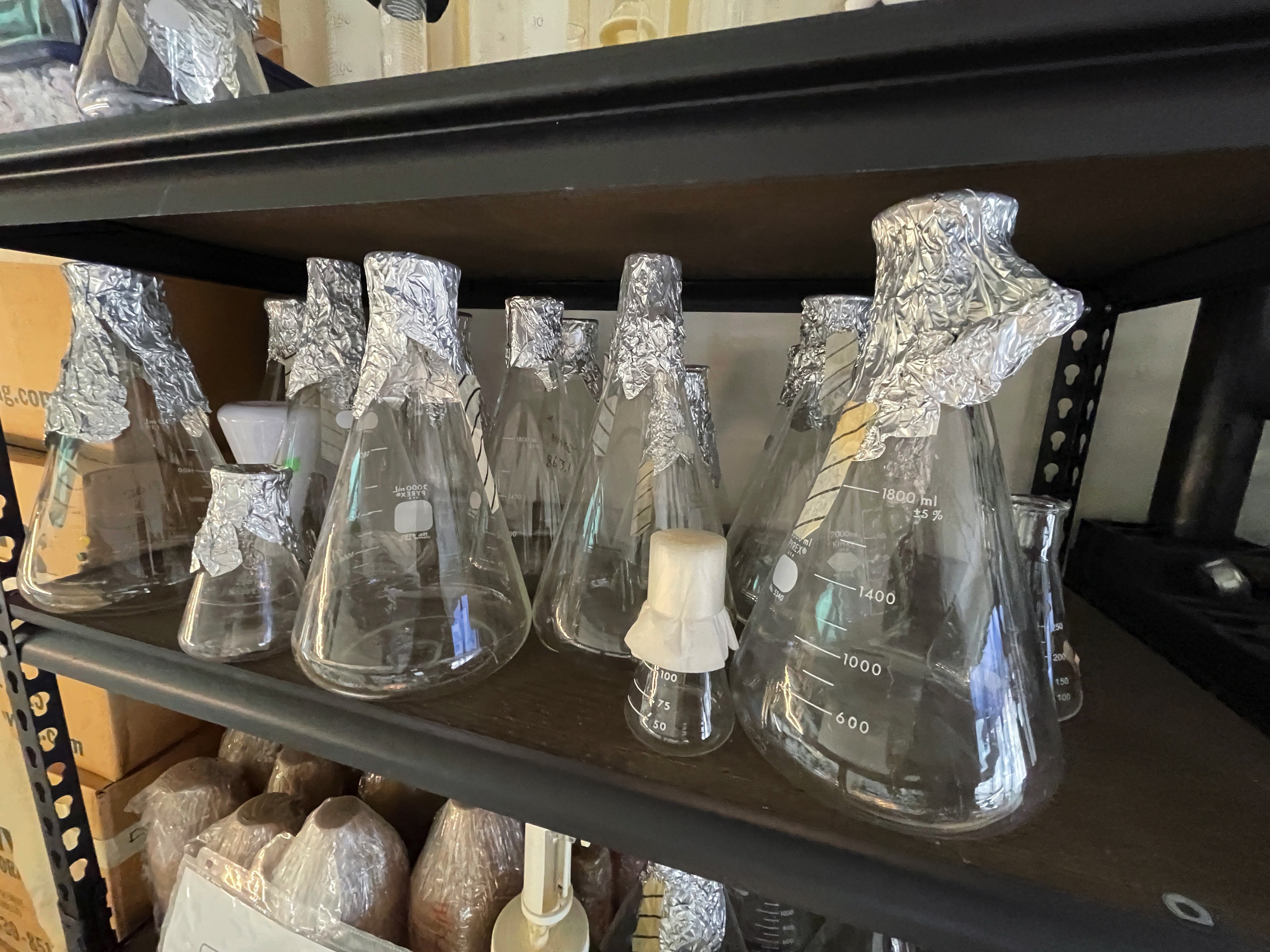

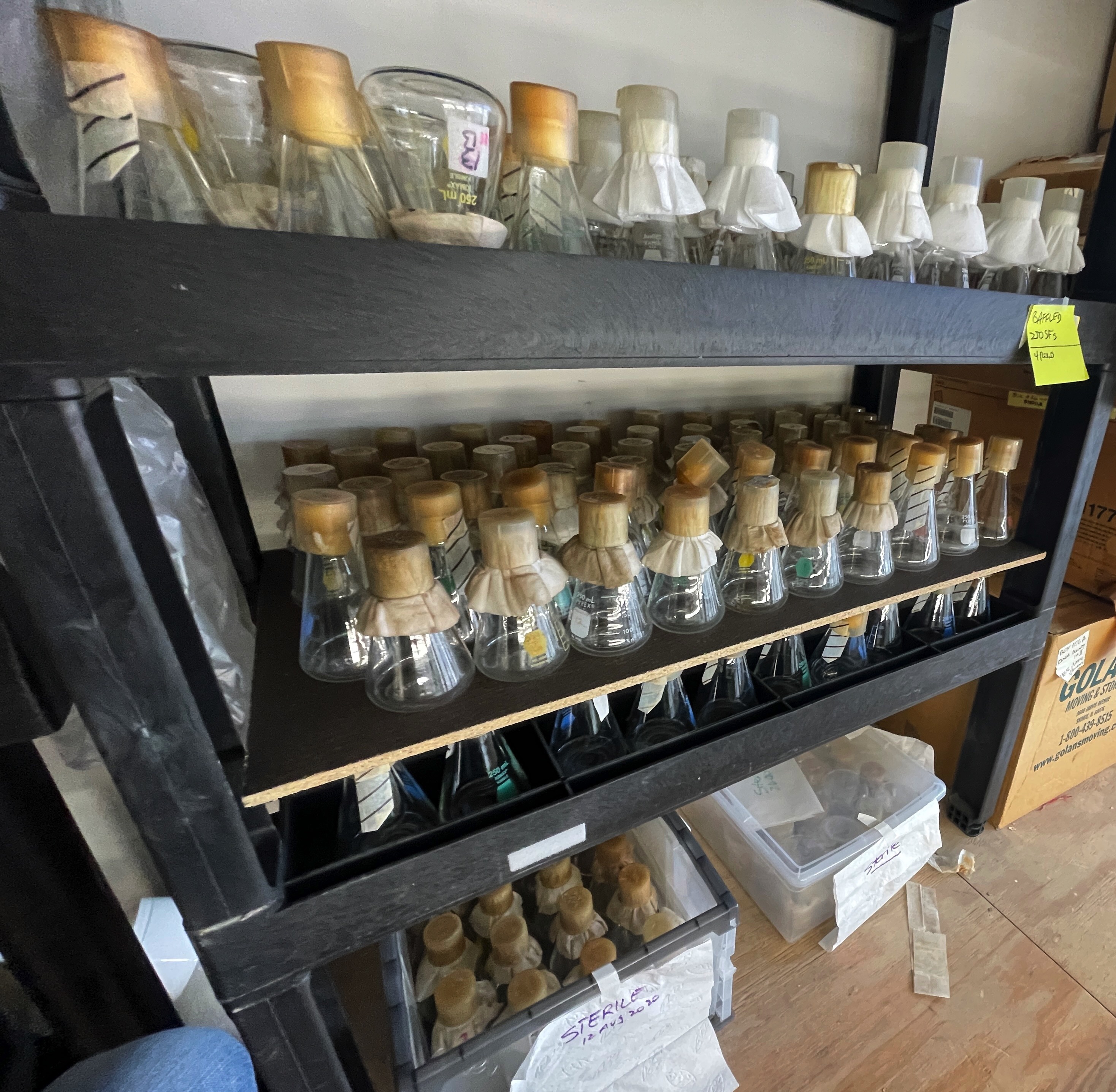

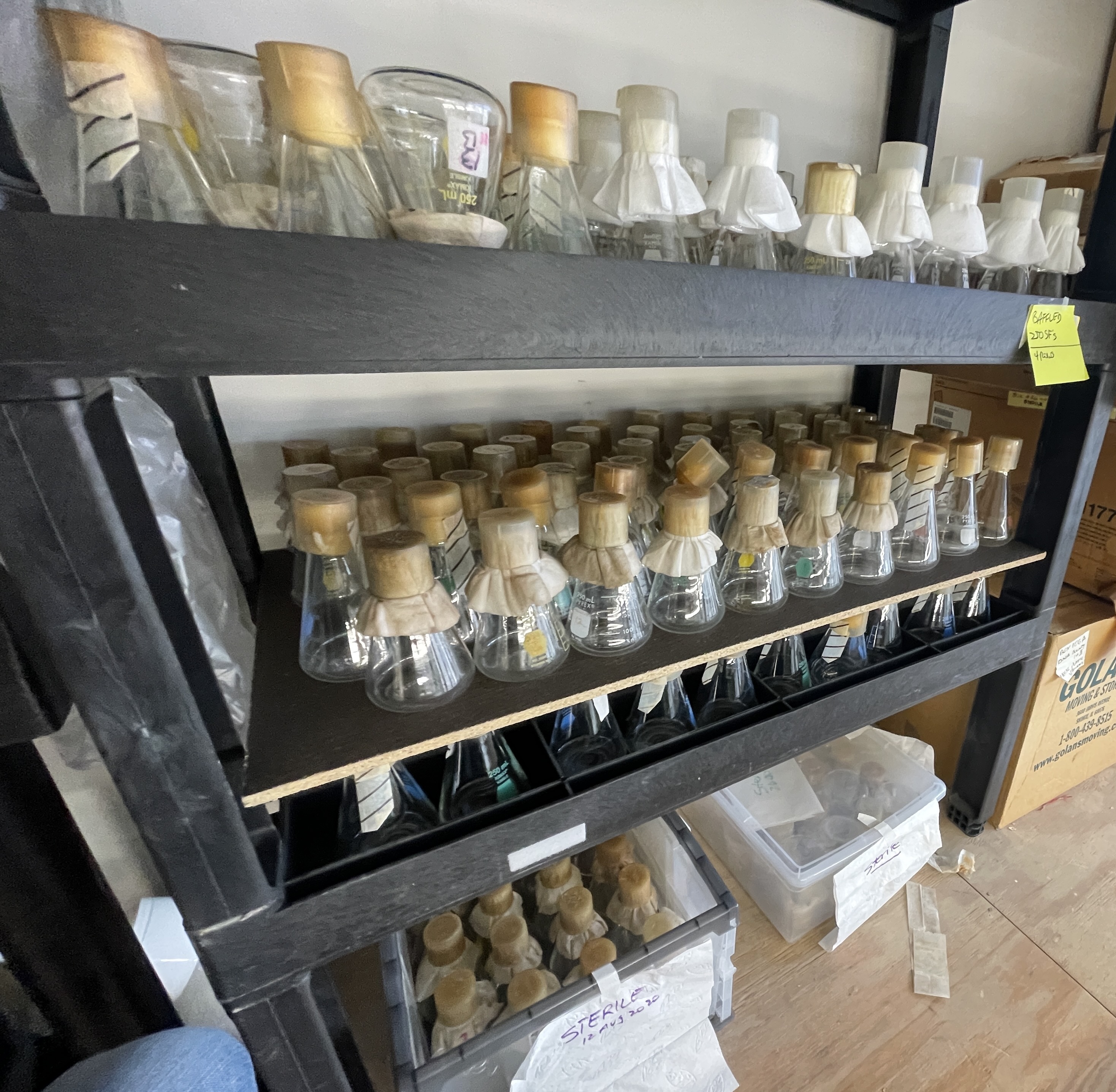

Shake flask size followed by number of units possible: M tray (850 mm x 470 mm) 25 mL 197 50 mL 131 100 mL 91 250 mL 48 500 mL 31 1000 mL 19 2000 mL 13 3000 mL 9 4000 mL 8 5000 mL 6 |
