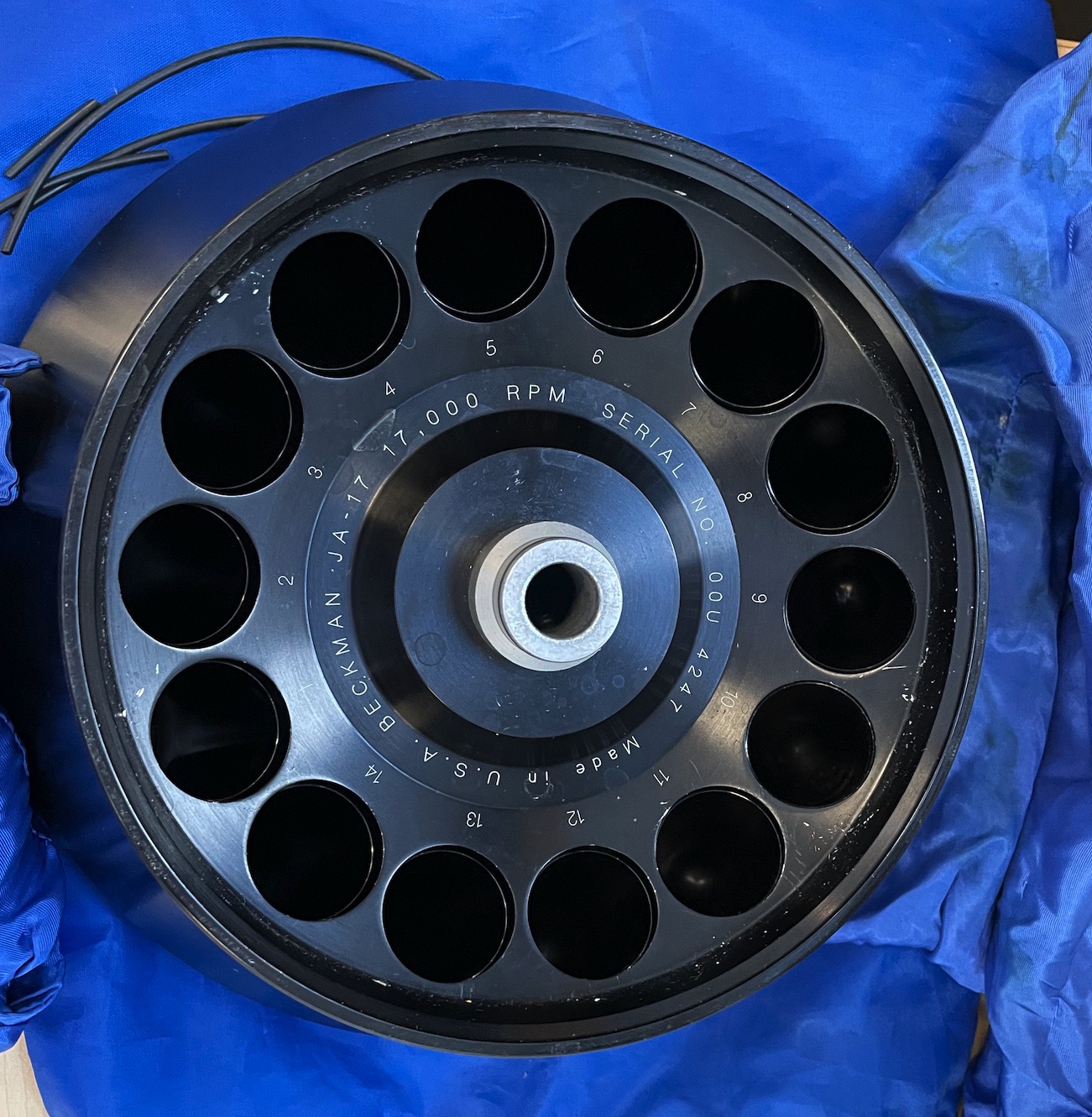

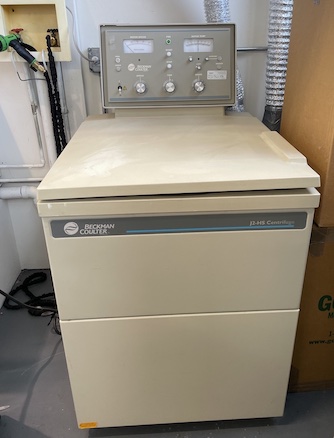

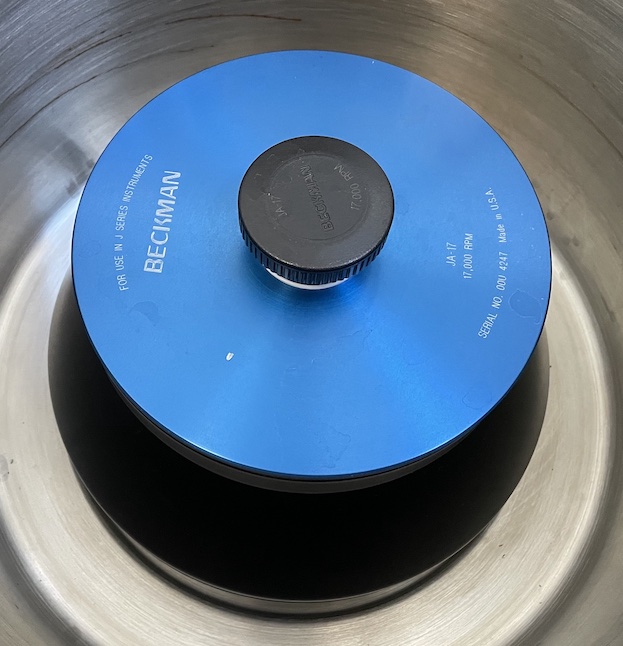

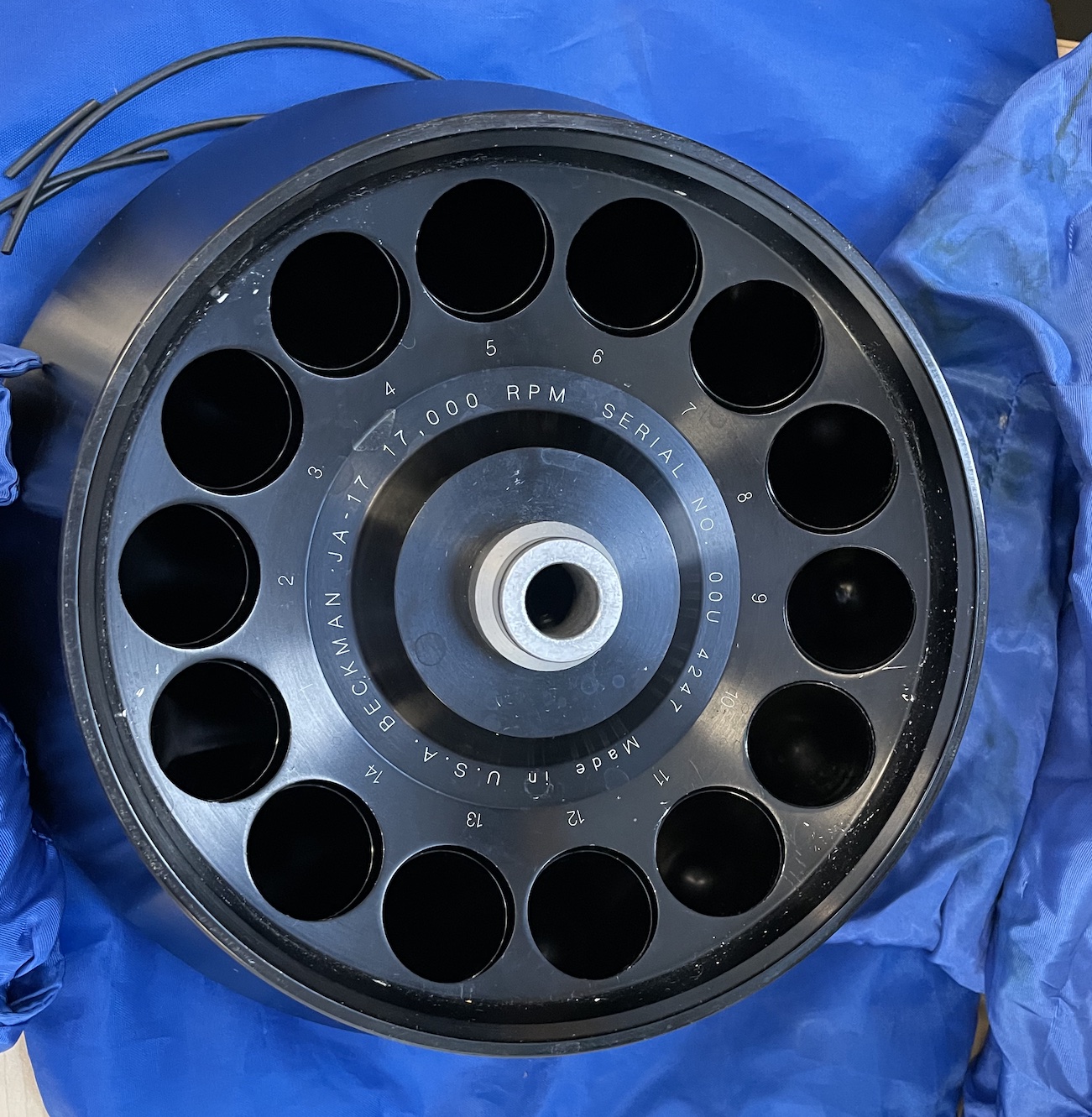

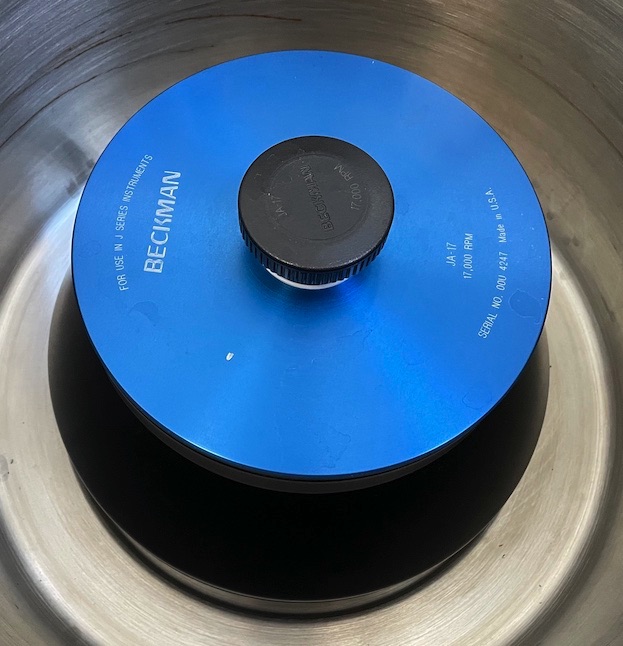

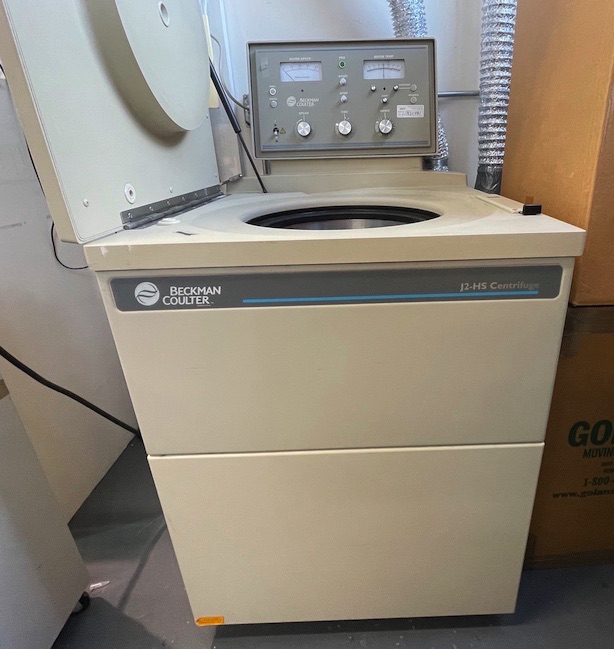

Beckman Model J2-HS Refrigerated Cenrifuge with JA-17 and JA-14 rotors
Gallery
Description

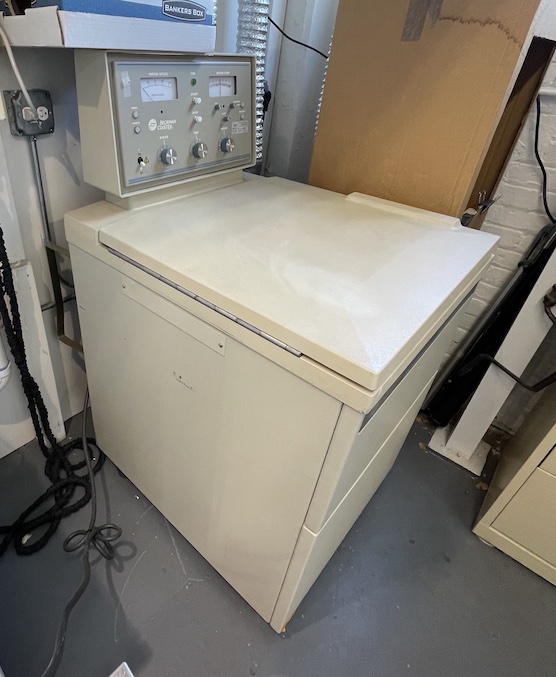

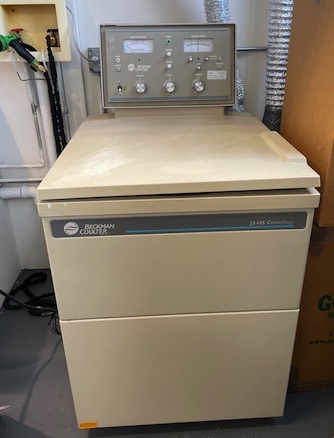

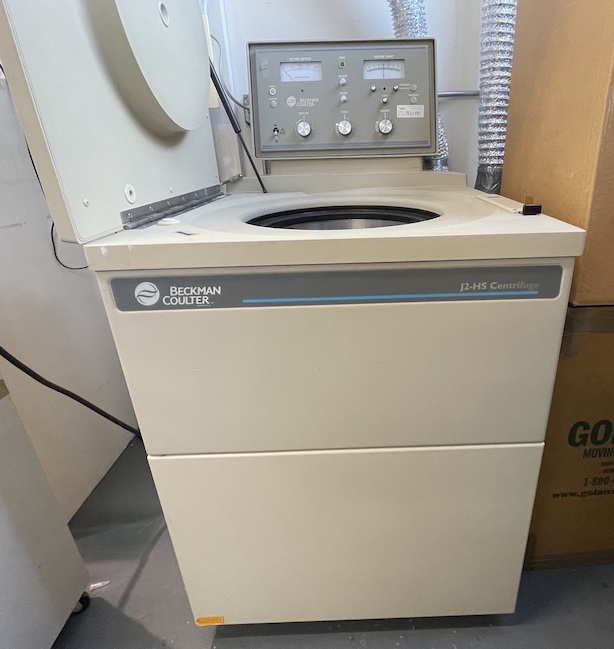

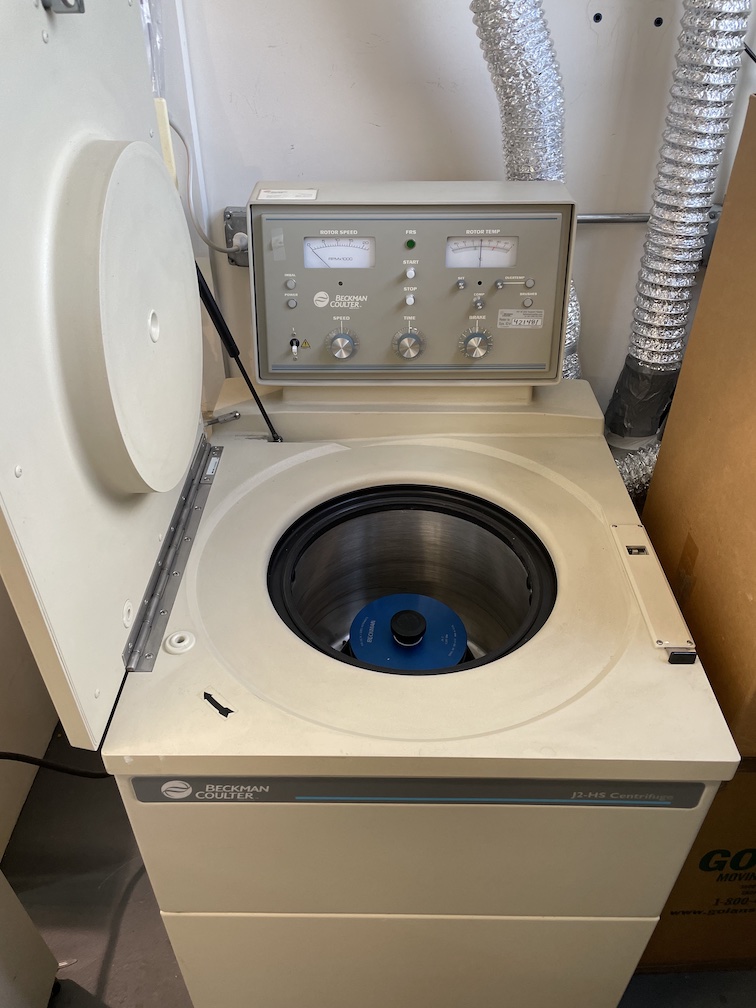

Centrifuge is in excellent condition with only cosmetic wear, as seen in photos, all features in working order.
The Beckman Coulter J2-HS High Speed Refrigerated Centrifuge is designed for greater throughput and enhanced productivity for rapid separations and minimized downtime. Combining unparalleled safety with operator convenience, the J2-HS centrifuge can be used for spinning down or samples of variable densities.
Specifications: | |
Max speed | 21000 rpm |
Max volume | 3 liters |
Temperature range | -20°C to Ambient |
Timer | 0 to 160 minutes or hold |
Speed control | 200 rpm |
Dimensions | 28" W x 33" D x 50"H (71.1 x 83.8 x 127 cm) |
Weight | 656 lbs (278 kg) |

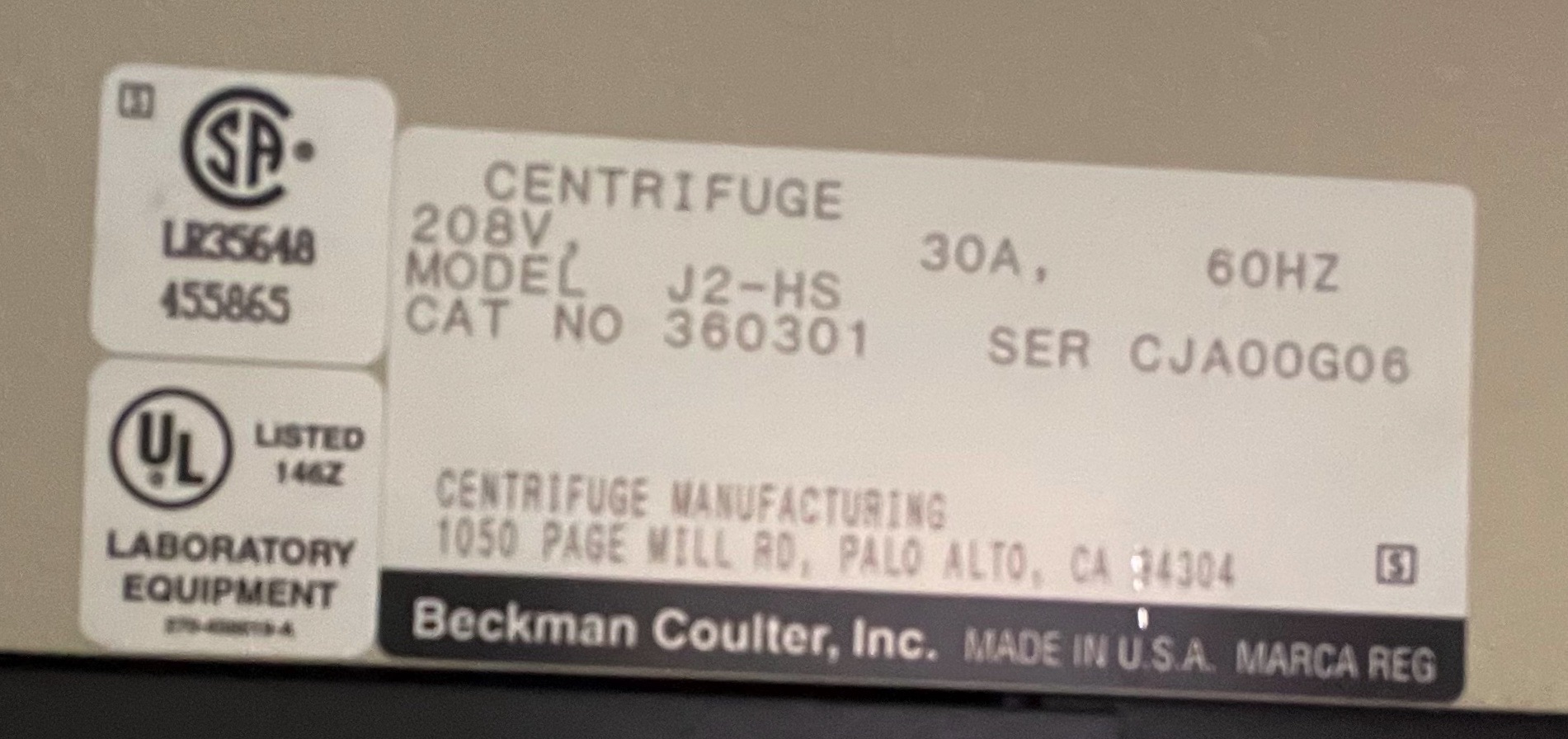

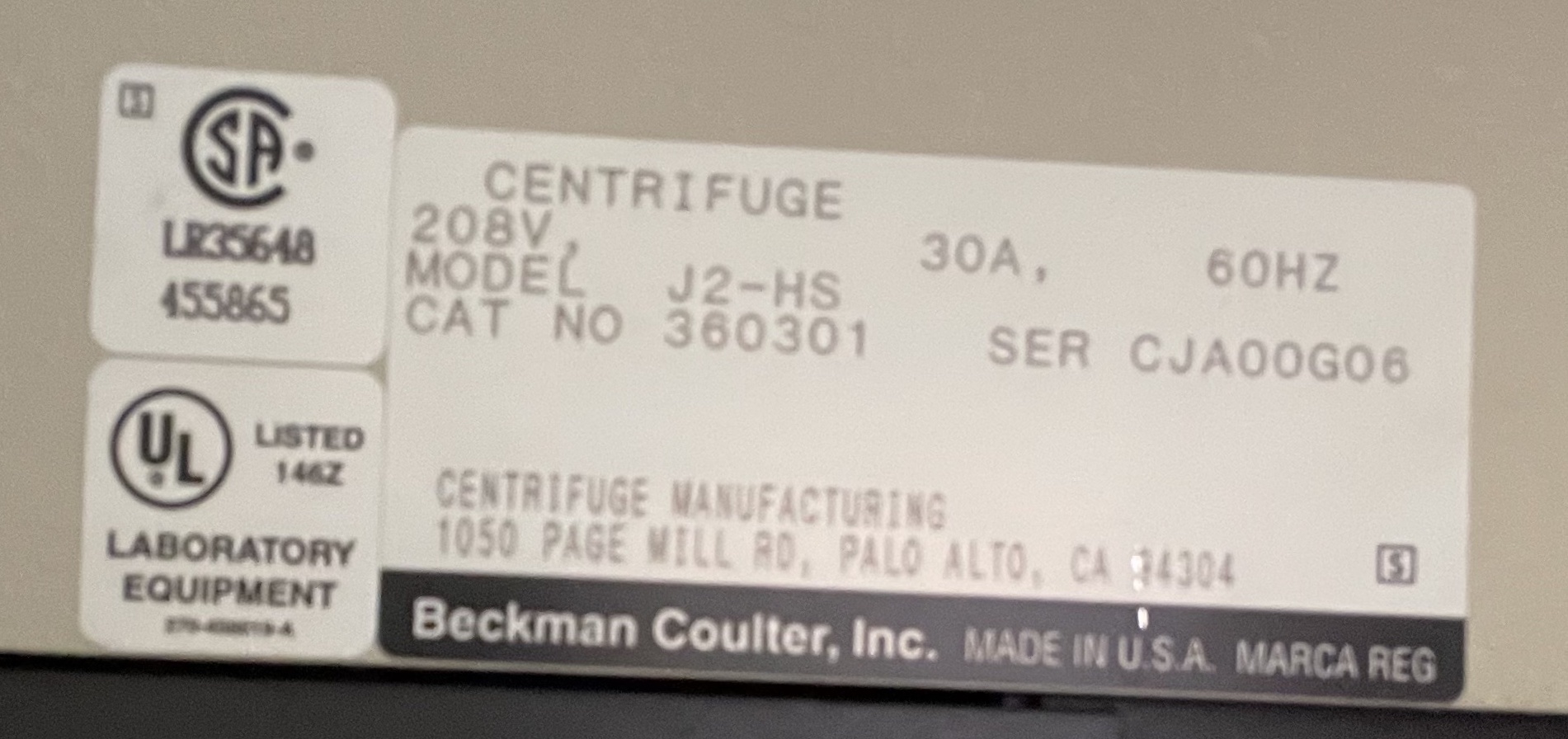

ELECRIC REQ. 208V 30A 60Hz
SERIAL NUMBER: s/n CJA00G06

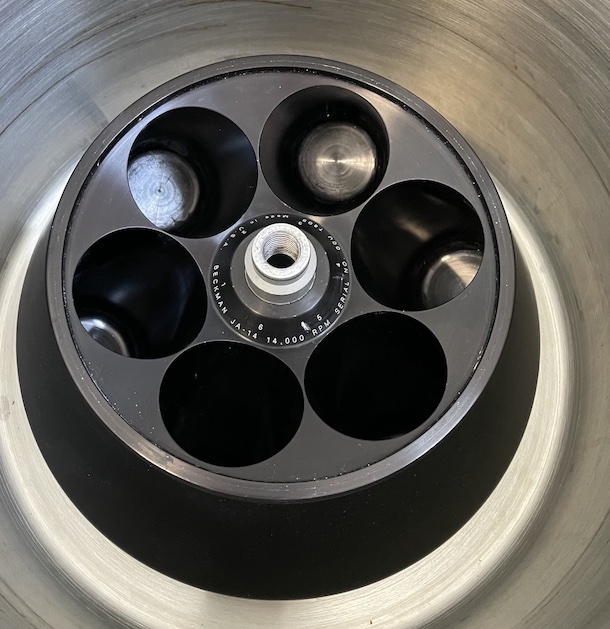

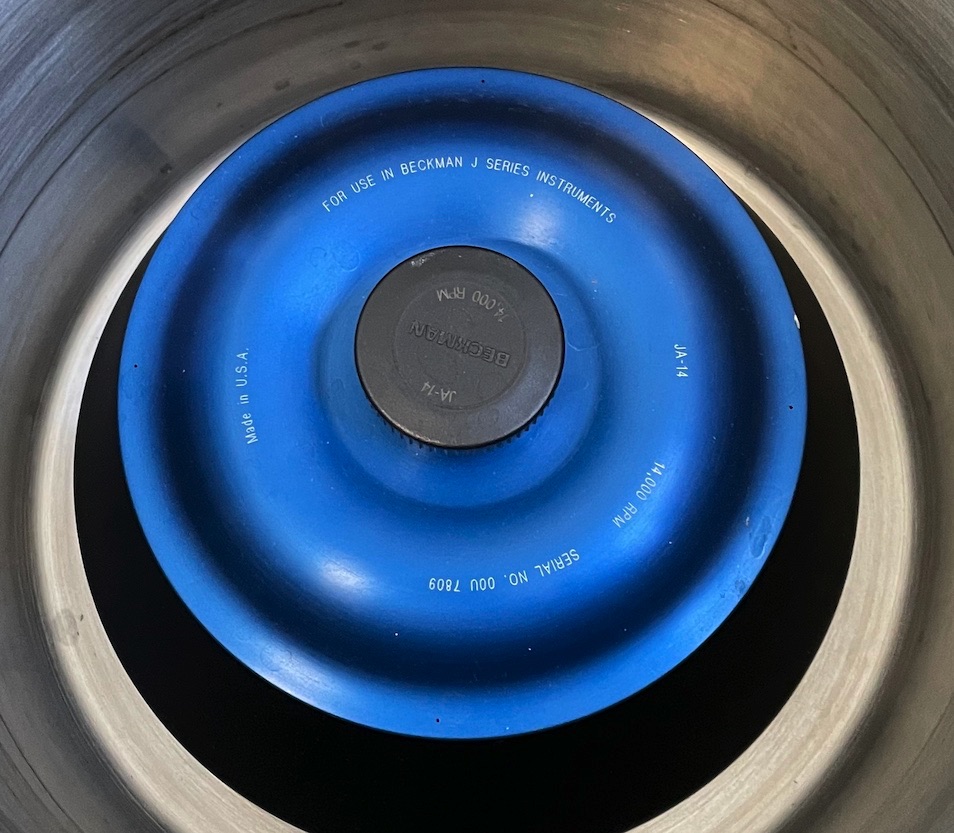

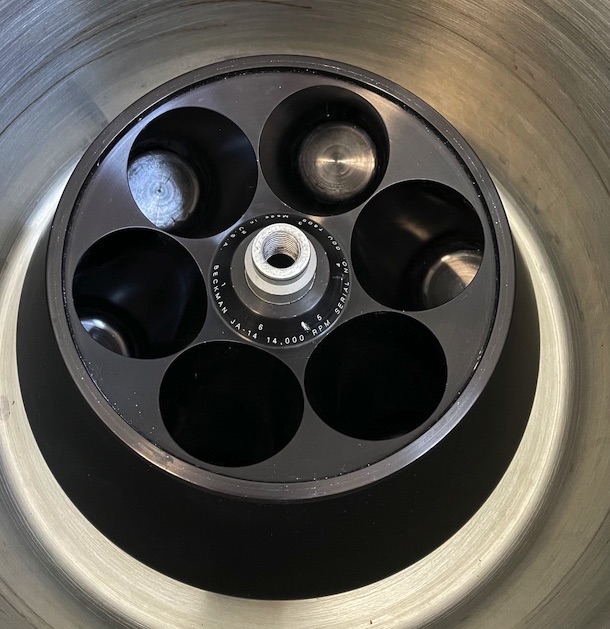

JA-14Rotor

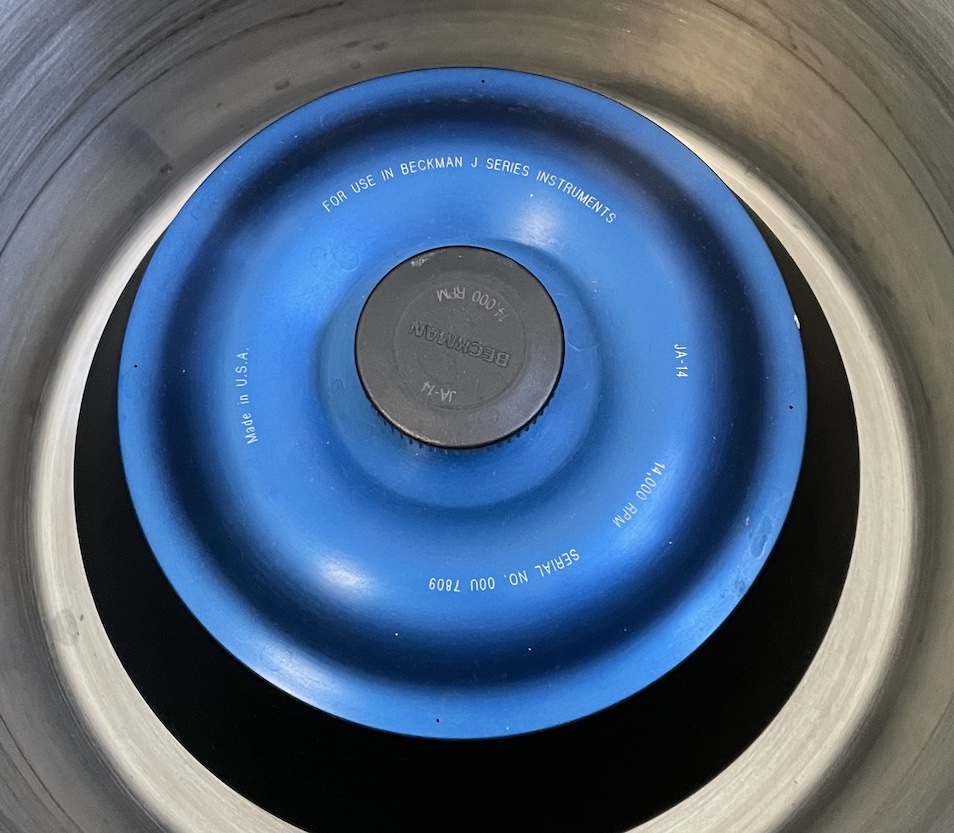

The JA-14 fixed angle rotor, rated for 14 000 rpm, is designed to centrifuge up to six 250-mL containers at a 25-degree angle to the axis of rotation. Used in Beckman Coulter J2, J6, and Avanti J series centrifuges, the rotor develops centrifugal forces that can efficiently pellet bacterial cells from large volumes, or particles from tissue homogenates. Short column methods (such as partially filled tubes) may also be used to purify a large quantity of virus in a step gradient. Up to 1.5 liters of sample and gradient can be centrifuged per run. The rotor body and lid are made of aluminum and are anodized for corrosion resistance—the rotor is black and the lid is blue. The lid knob secures the rotor to the drive hub.
Maximumspeed .....................................14000rpm
Criticalspeedrange* ............................. 600to800rpm
Maximumsolutiondensity .............................. 1.2g/mL
Maximum allowable imbalance of opposing loads . . . . . . . . . . . 10 grams
Relative Centrifugal Field† at maximum speed
Atrmax(137mm) ................................ 30100×g
Atrav(86mm)................................... 18900×g
Atrmin(35mm) .................................. 7680×g
kfactoratmaximumspeed................................. 1764
Numberofbottlecavities ..................................... 6
Availablebottlesandtubes............................ seeTable1
Nominaldimensionsoflargestbottle................... 62×120mm
Nominalbottlecapacity ................................. 250mL
Nominalrotorcapacity ................................. 1.5liters
Approximate acceleration time to maximum speed
(rotorfullyloaded).................................... 4min
Approximate deceleration time from maximum speed
(rotorfullyloaded,max.brake).......................... 4min
Weightoffullyloadedrotor ........................ 13.6kg(30lb)
Rotormaterial....................................... aluminum
Conditionsrequiringspeedreduction .................. seeRUNSPEEDS
Rotor entry code for Avanti J-E centrifuges and
microprocessor-controlled J2 and J6 centrifuges. . . . . . . . . . . . . . . 14
https://www.beckmancoulter.com/wsrportal/techdocs?docname=J-TB-004..
